GDSII_Import

GMPT, October 2024

To facilitate the import of GDSII files, Macondo provides a convenient visualization layer preview feature.

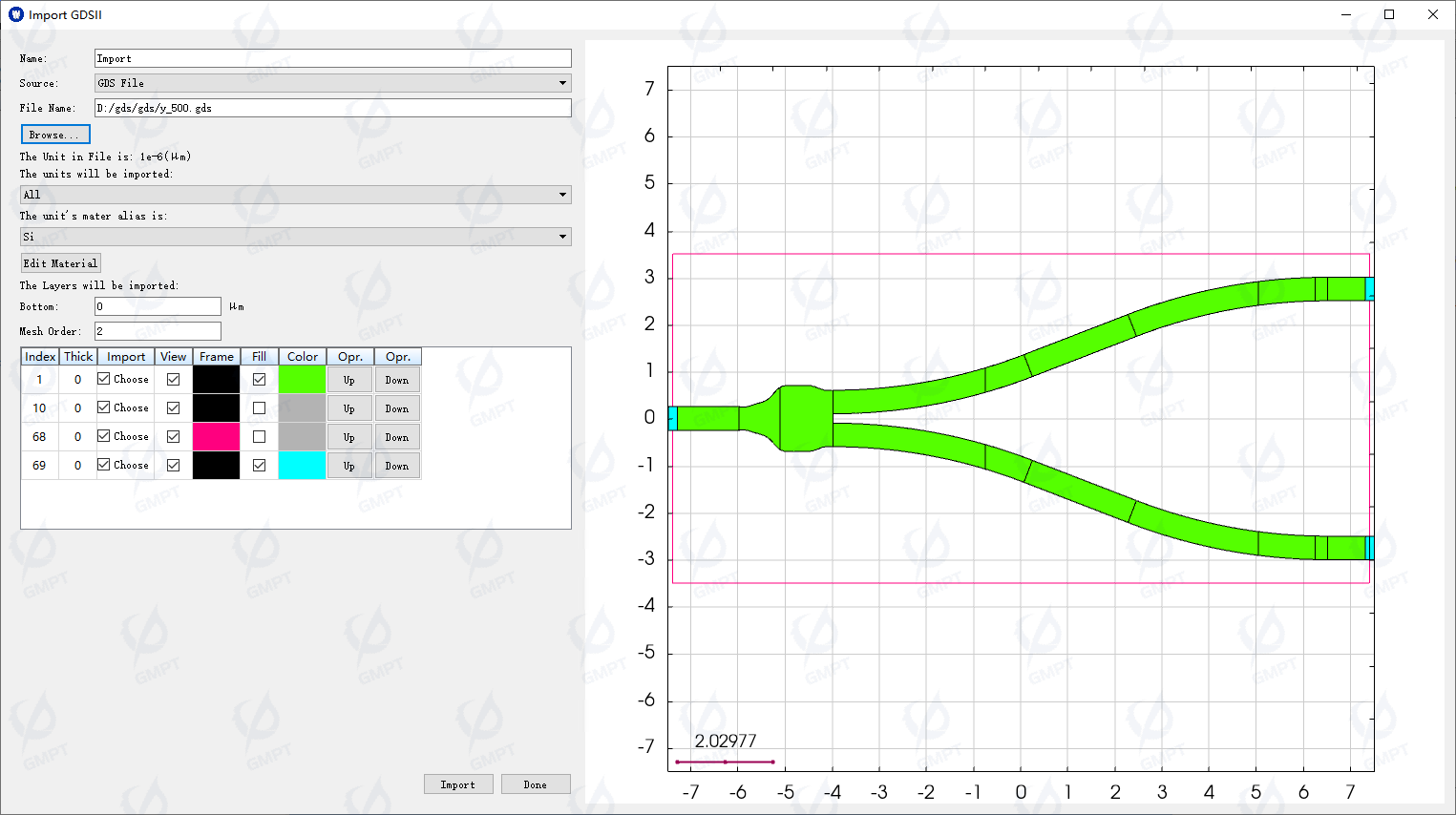

Visualized GDSII File Import Window：

In GDSII files, device patterns are typically composed of multiple geometric units. To facilitate the overall structural property settings for users, the imported geometric structures are organized as structure groups containing multiple units. Users can also create their own structure groups to perform batch operations on the structures within the group.

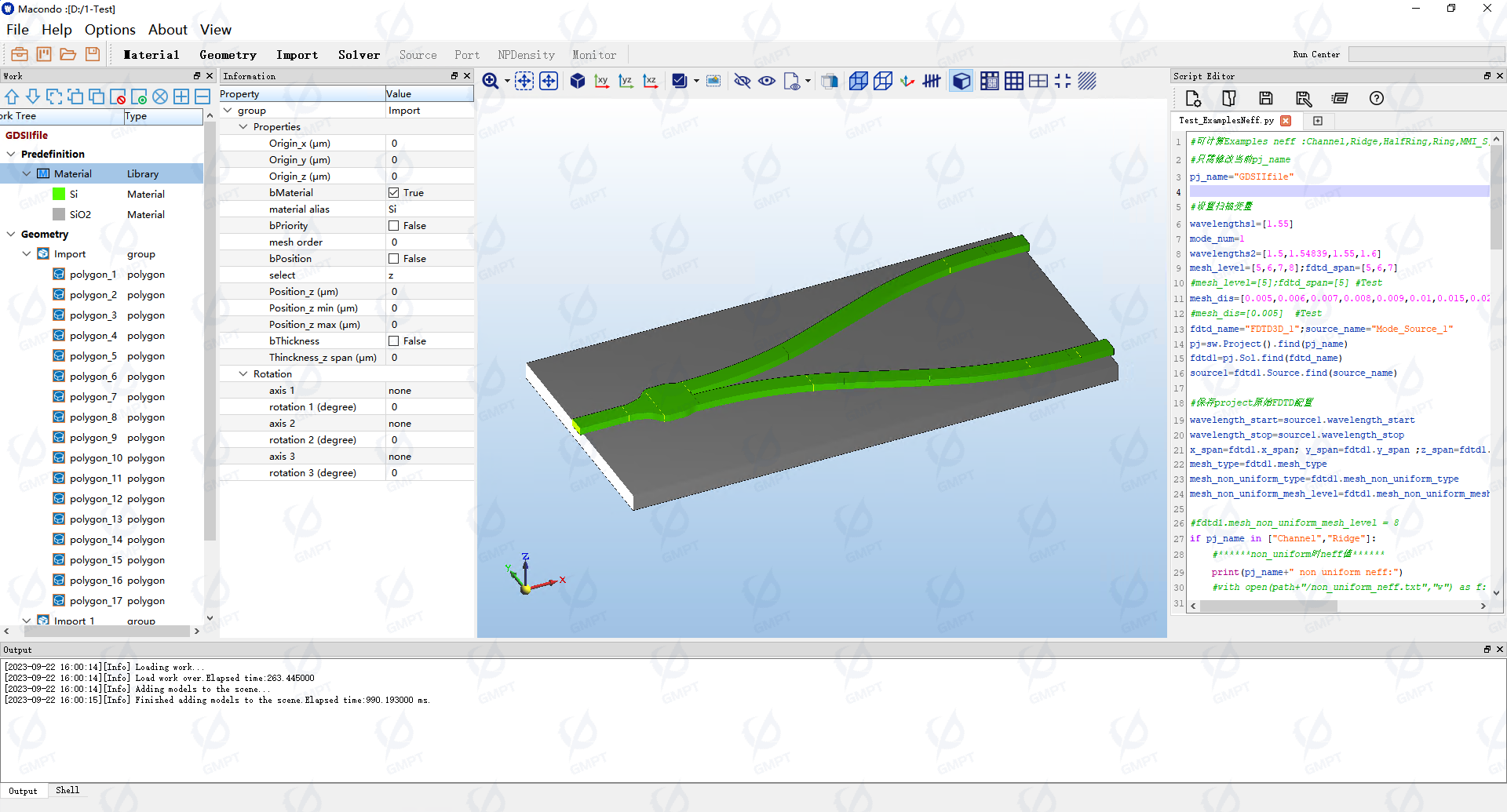

Import geometric group for Y_brach.gds:
