Pertubation Import (NP Import)

GMPT, October 2024

Macondo supports the import of carrier np data from Nuwa TCAD, allowing it to be used in conjunction with Nuwa for simulating electro-optic modulator devices.

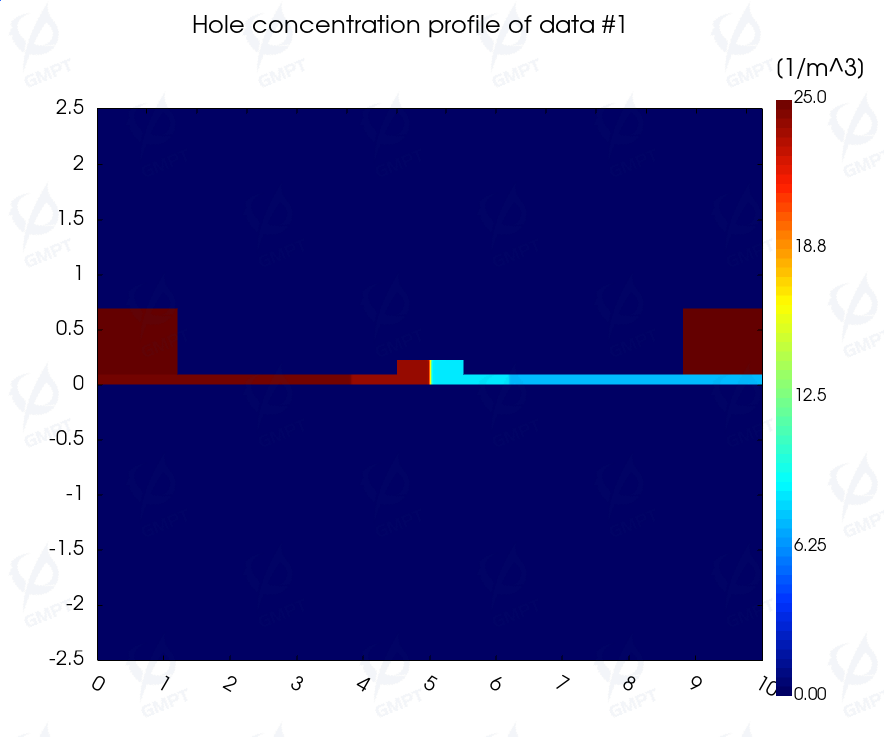

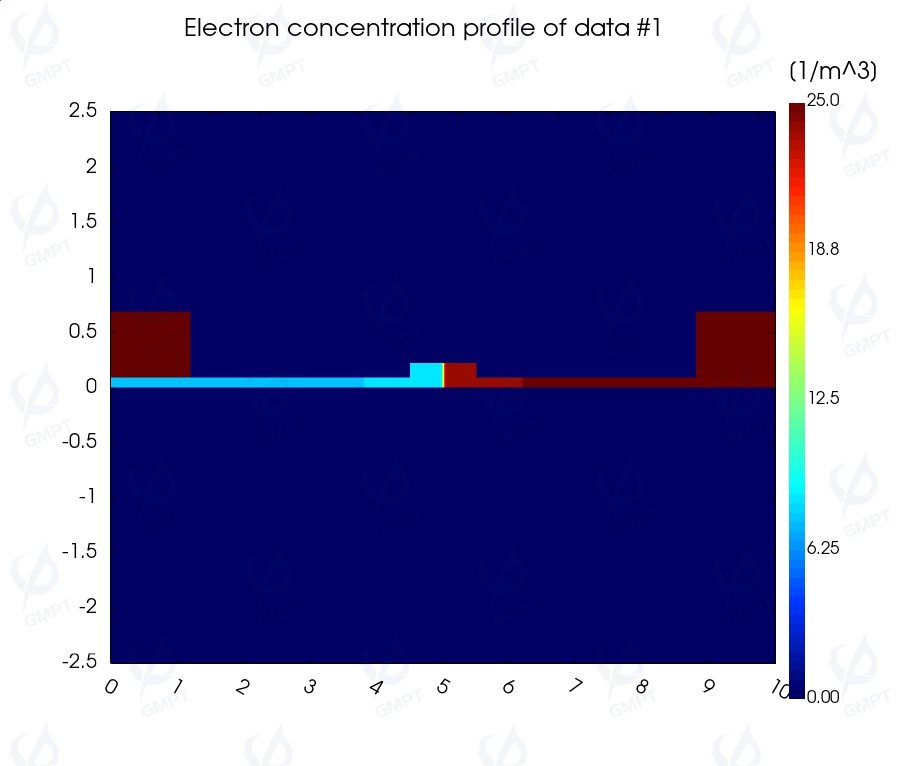

Carrier distribution calculated by Nuwa TCAD：

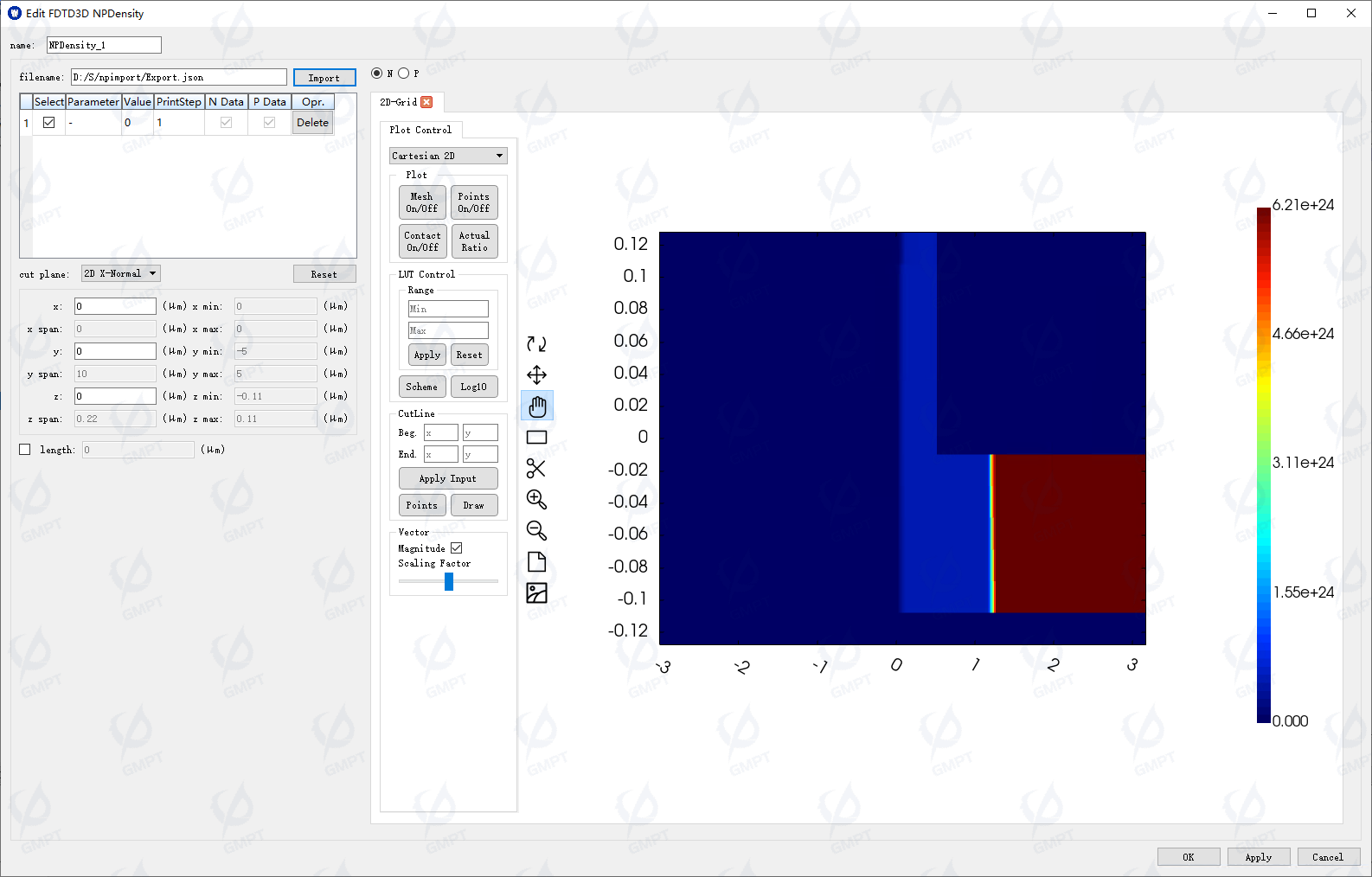

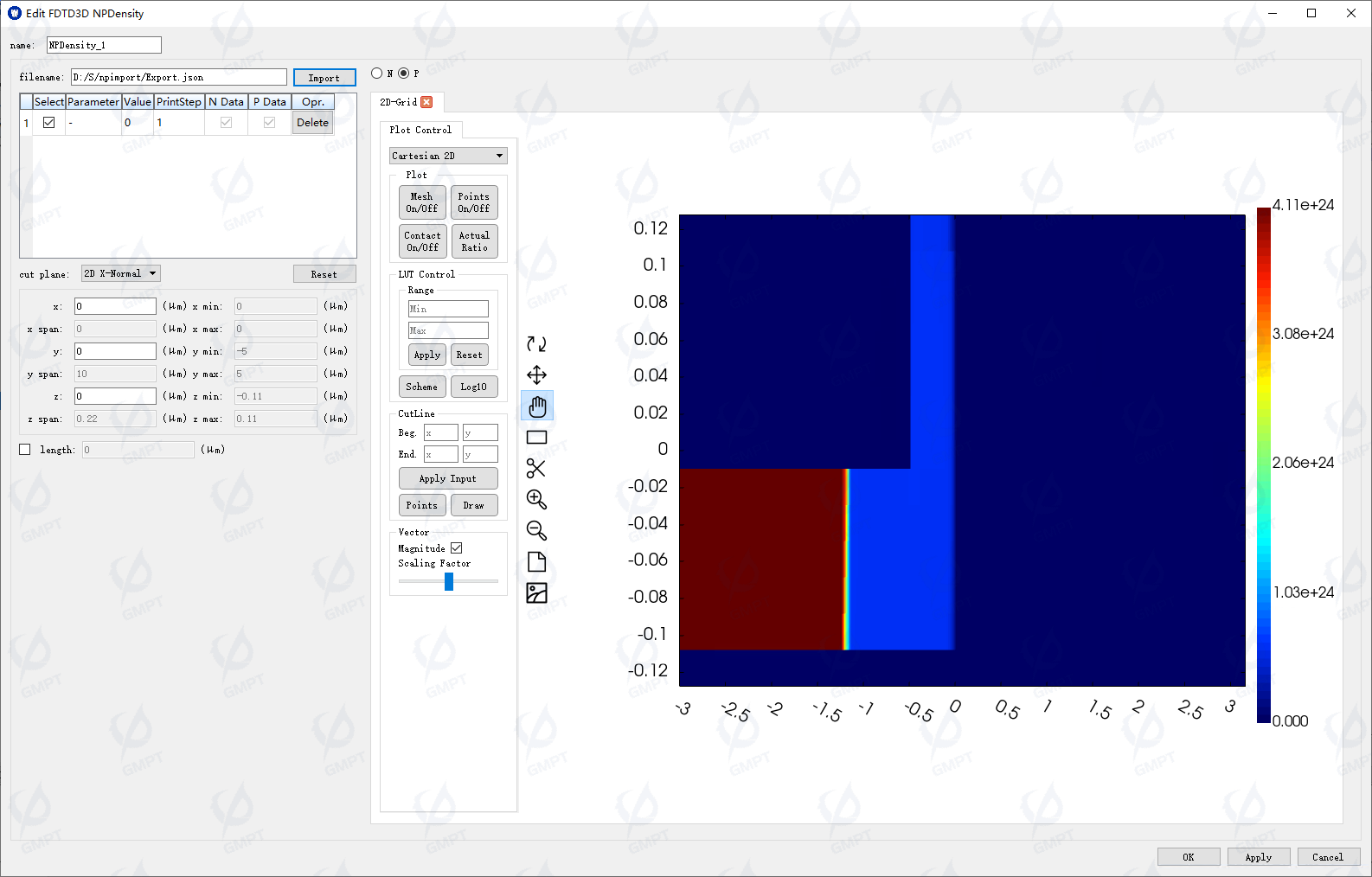

Carrier distribution of the structured mesh through mesh mapping obtained in Macondo ：
